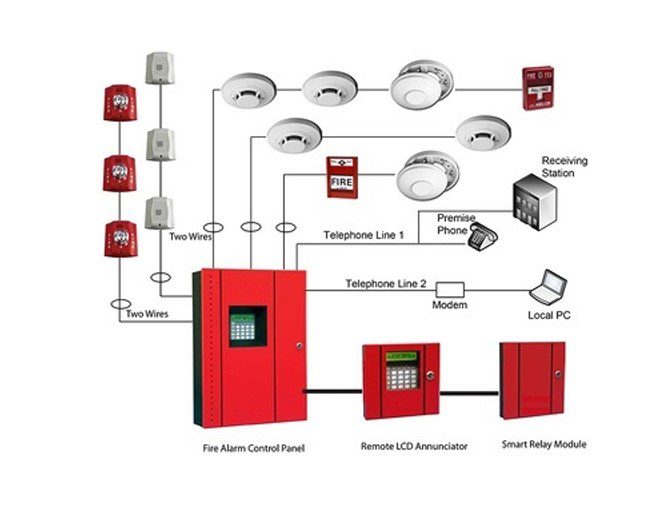

Conventional Fire Alarm
One or more starting circuits, also known as initiating devices, are included in a typical system and are connected to sensors. When the ambient influence on any sensor rises above a set threshold, these sensors are designed to reduce the circuit resistance.
In a typical system, it can be challenging to identify precisely which device inside the circuit has been actuated. Although the fire may only be in a small room, emergency personnel believe that it might be anywhere in the “zone. This is why smaller locations such small schools, shops, restaurants, and apartments would be a more acceptable usage for conventional systems. Allies produces system components and has access to a large selection of national and international brands.

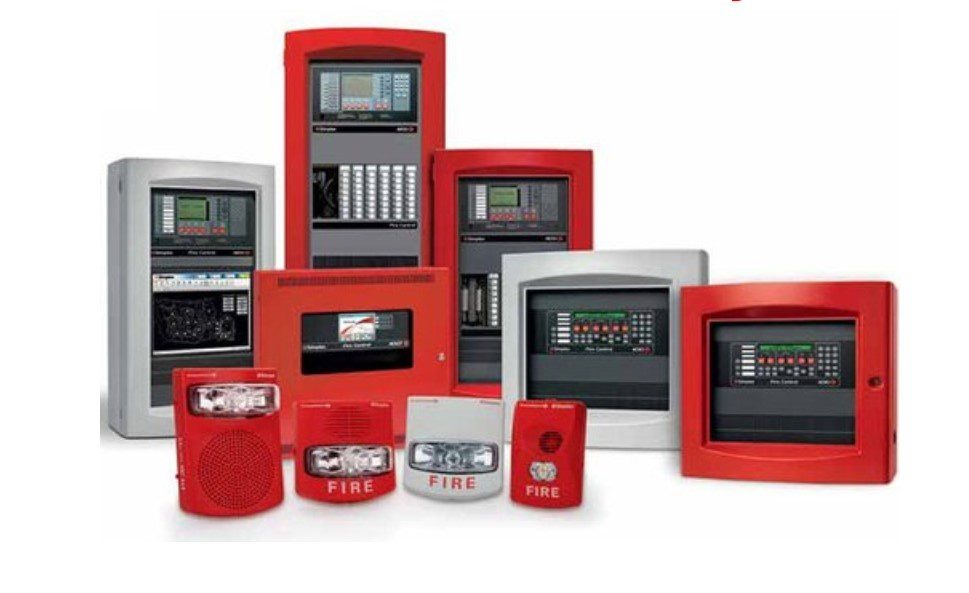

Addressable Fire Alarm
Systems with addressable fire alarms are created with flexibility in mind through programming that is unique to each application. Inputs are logically controlling dedicated outputs based on the written programming matrix. They can handle numerous signal line circuits (SLCs), where each device on the SLC is given a special identity known as an address. The majority of the time, the SLC has from one and several hundred devices, with varying combinations of detectors and modules. Each gadget uses microprocessor technology to interface with the control panel constantly in order to update the SLC on its status. A exact location of the occurrence is displayed and alerts, supervisory conditions, and difficulty circumstances are immediately alerted to the control panel.

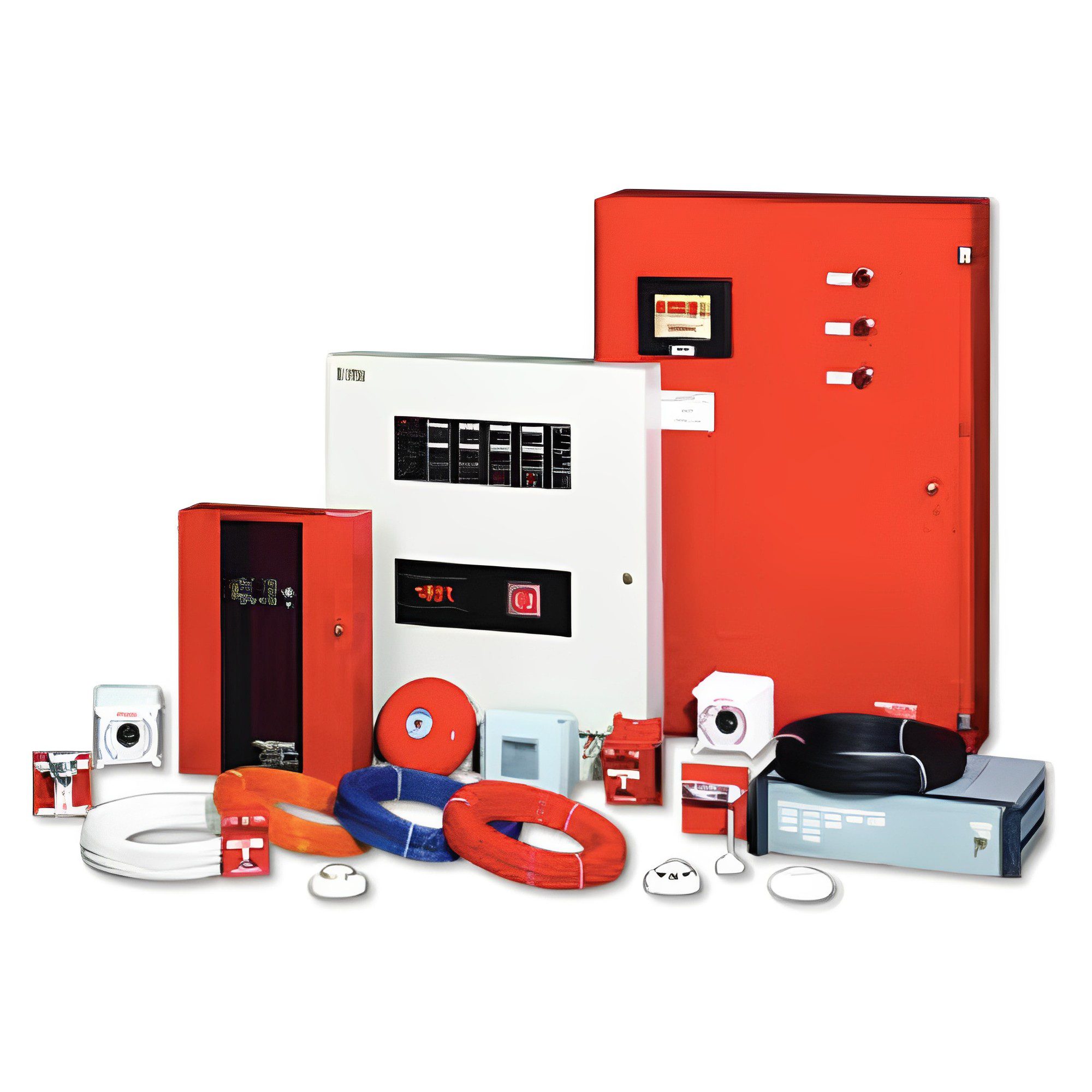

Linear Heat Detection
For customized application to particular threats, linear heat detection is a flexible and affordable fire detection solution. The cable is ideally suited for difficult environments where it is necessary to cost-effectively place fire detection close to the potential hazard.
Advanced polymer and digital technologies are combined in the cable to create a device that can sense heat conditions anywhere along its length. The cable is made up of two tri-metallic conductors that are each separately insulated with a heat-sensitive polymer outer layer and designed to fail at a certain temperature. This eliminates the need for any calibration for variations in the ambient temperature and enables the twisted conductors to make contact and start a fire alarm condition at the control panel.
Aspiration Fire Detection
The earliest possible indication of a probable fire is provided by aspirating smoke detecting technology. a system that will guarantee operational continuity and eliminate annoyance warnings a system that is capable of changing to fit the specific requirements of every given situation.

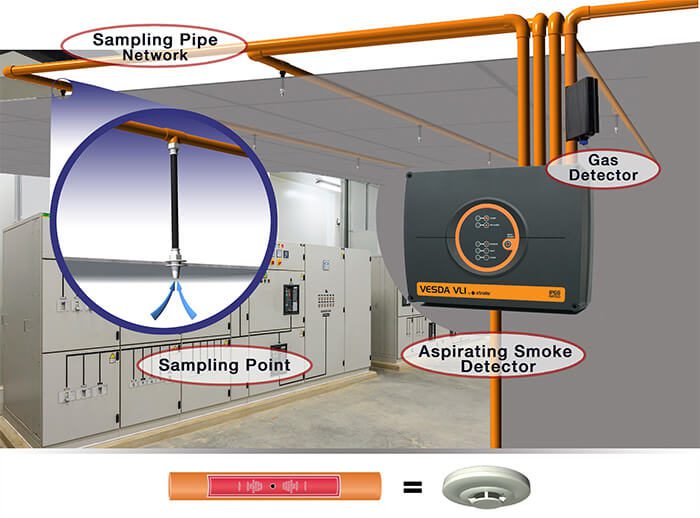

Through the use of an extremely effective aspirator, aspiration smoke detection constantly draws air into the dispersed pipe network. After that, the air sample goes through a two-stage filter. Before entering the laser detecting chamber, the first stage cleans the air sample of dirt and dust. The second, ultra-fine stage offers an extra source of clean air to keep the detectors’ optical surfaces free of impurities, providing reliable calibration and a long detector life as well as reducing annoyance warnings.
After passing through the filter, the air sample is subjected to a laser light source in the calibrated detecting chamber. When smoke is present, light is distributed inside the detecting chamber, and the extremely sensitive receiver system immediately recognizes it as smoke. The signal is subsequently processed and shown on a graphic display, bar-graph display, or alarm threshold indications. Aspiration detectors can transmit this data to a fire alarm control panel, a software management system, or a building management system through relays or a High Level
